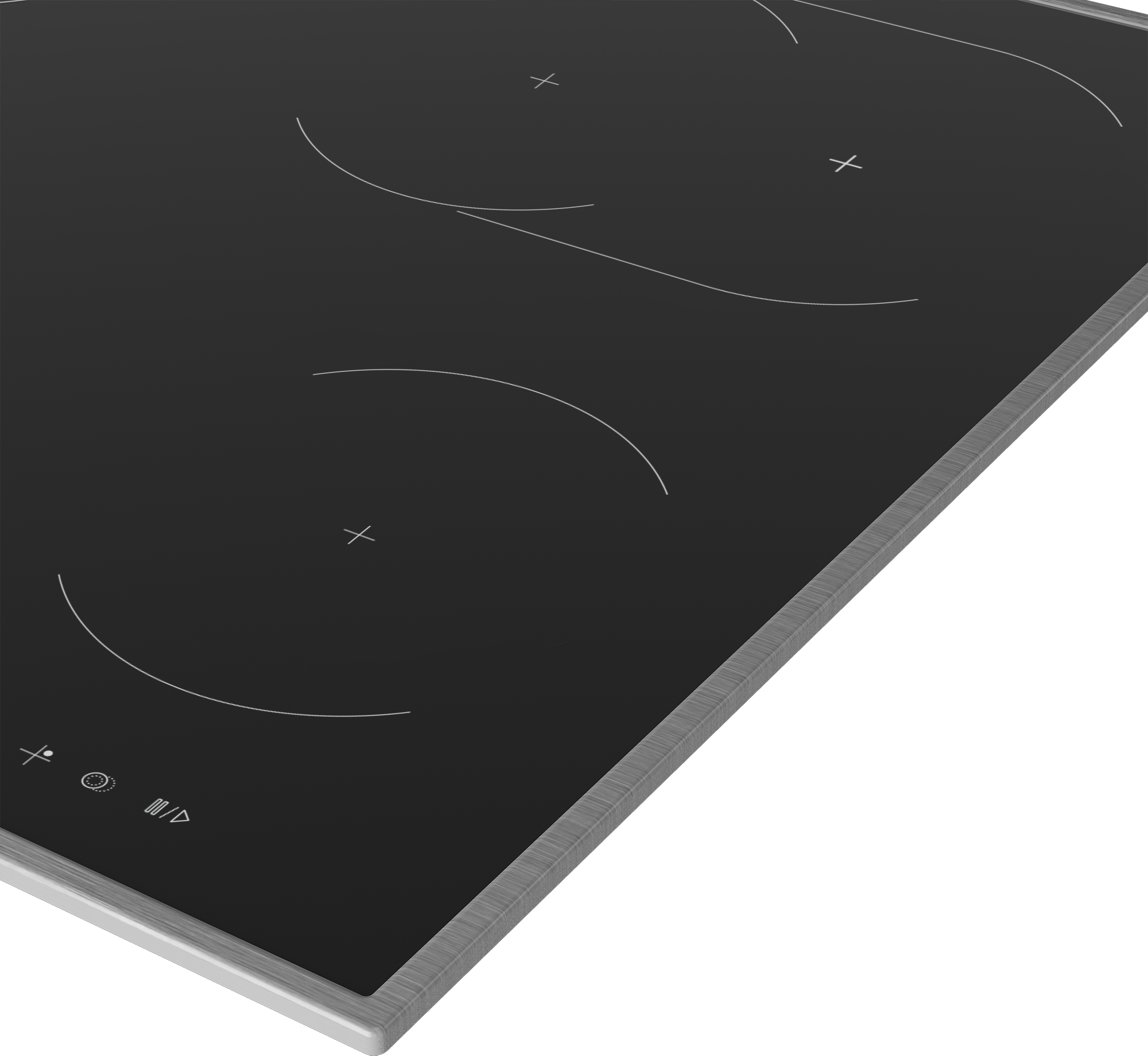

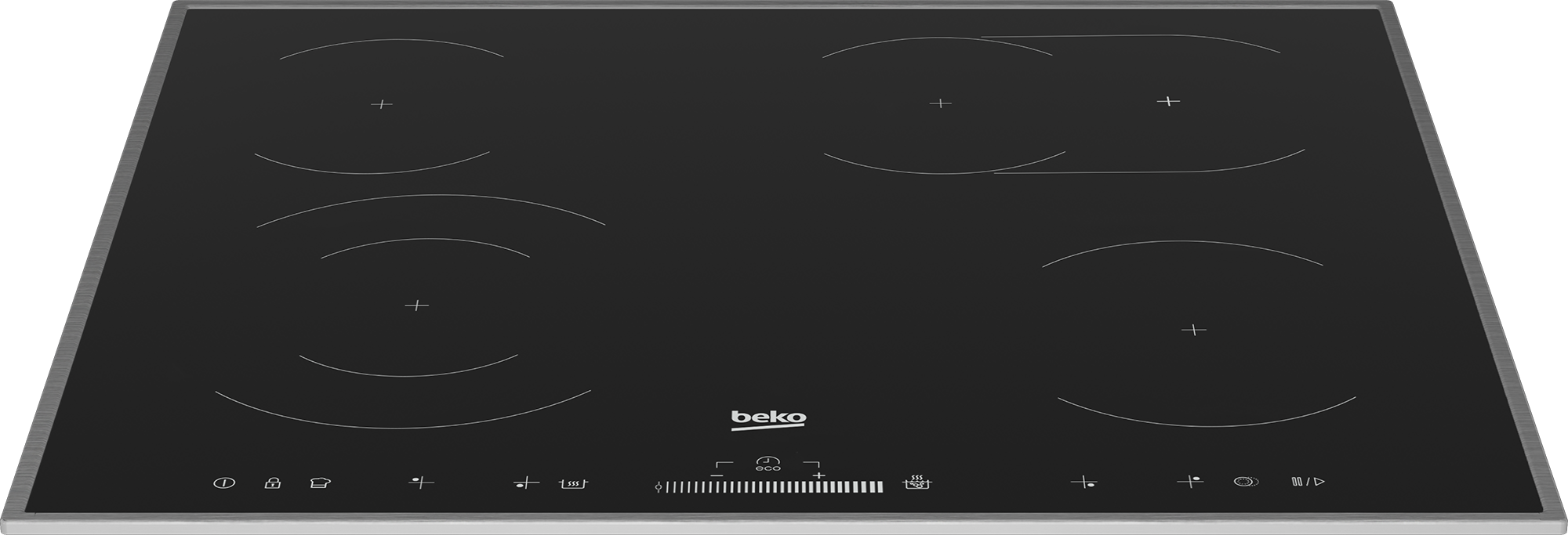

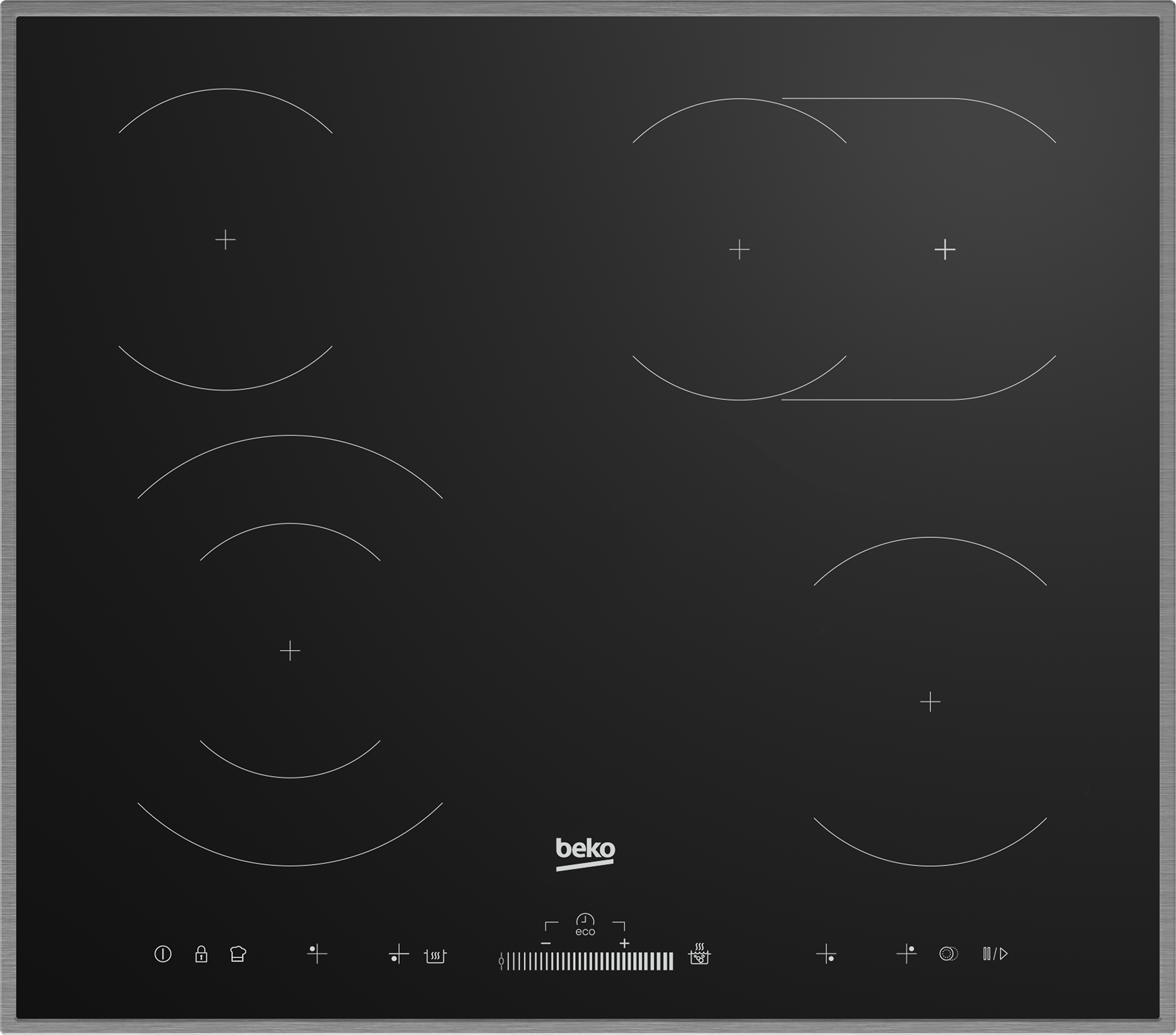

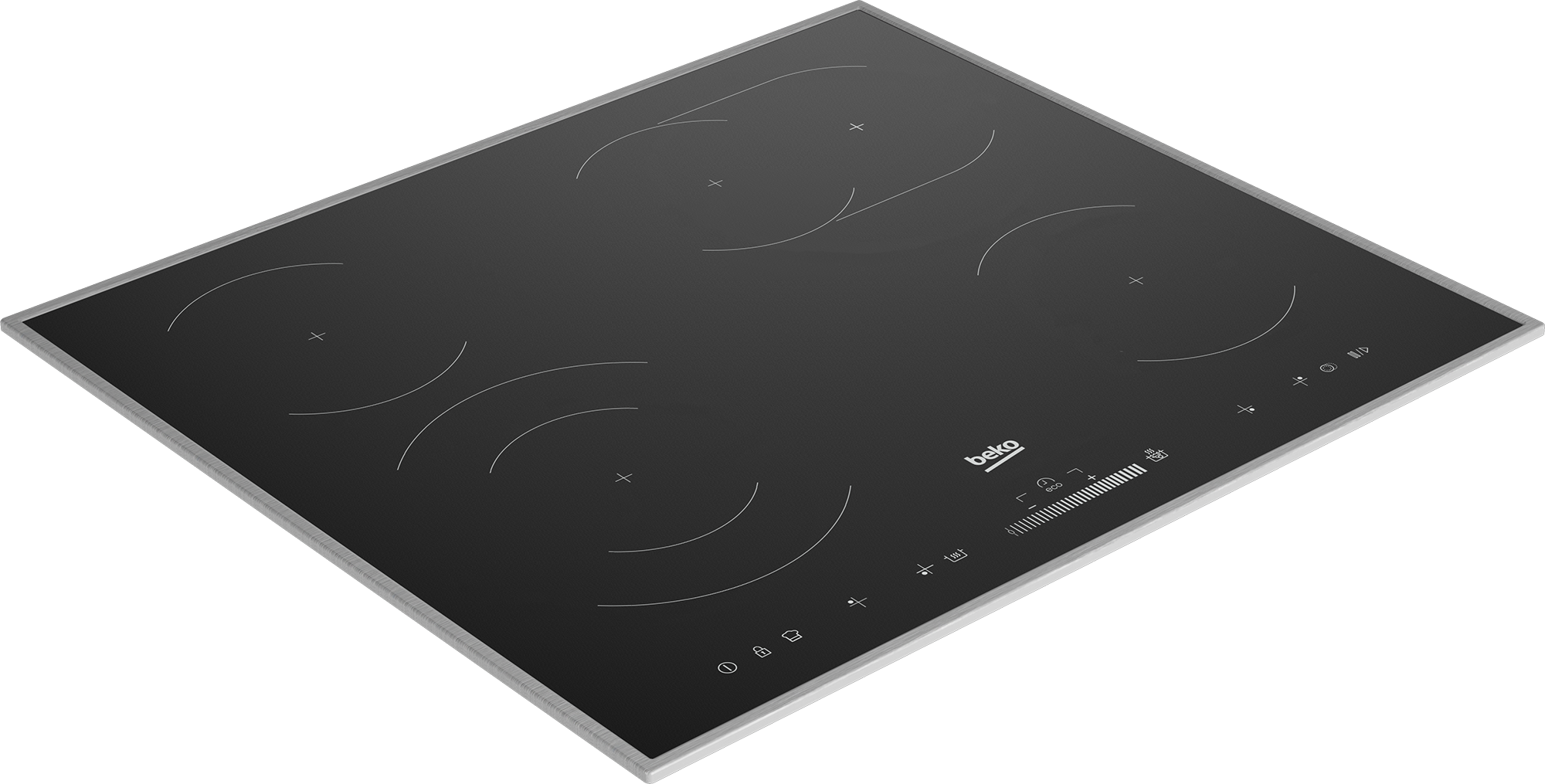

HIC 64503 TX: Ugradbena ploča za kuhanje (Staklokeramički, 60 cm)

HIC 64503 TX
shadow

Drag image left & right to rotate.

HIC 64503 TX: Ugradbena ploča za kuhanje (Staklokeramički, 60 cm)

Vrsta ploče za kuhanje Staklokeramički
Broj razina kuhanja 19
Boja Black
V D Š
Dimension (cm)
0 Visina
0 Širina
0 Dubina

Tehničke specifikacije

COMMON

Product Category

Export

Material Type

Produced Product

SAP Code

7756282901

Brand

Beko

Marketing Code

HIC 64503 TX

Product Type

Derivative

EAN Code

8690769831131

Frekvencija

50 Hz

Product Status

Satış Onayı

Napon

220 - 240 1N~ / 380 - 415 2N~ V

Width - Packed (in.)(x)

25.787401

Depth - Packed (in.)(z)

21.850393

Depth - Unpacked (in.)(z)

20.078741

Height - Packed (in.)(y)

4.92126

Width - Unpacked (in.)(x)

22.834646

Height - Unpacked (in.)(y)

1.4566929

Dubina pakiranja

55.5 cm

Širina pakiranja

65.5 cm

Visina pakiranja

12.5 cm

Širina

58 cm

Visina

3.7 cm

Dubina

51 cm

Weight - Packed (lb.)

22.046227

Širina pakiranja

10 kg

Težina

9 kg

Weight - Unpacked (lb.)

19.841604

Product Series

bPRO 500

Vrsta uređaja

Built-in

NPI Model Version Description

H1625H0927TNOP00A05

Eprel Registration Type

EU 2010/2013

Customer Code

HIC 64503 TX

Sales Organisation

Eastern Europe

Country

Kosovo

Production Plant

PCI

Requested Effectivity

Production Planning Decides

Production Format

CBU

Manufacturer Production Code

PCİ_2007HV01-00

First Production Quantity

250

Annual Quantity

2000

Requested Standards

EAC

Additional Standards

"Domestic and General Stickers and Brochures, importer Sticker"

PM User Name

AR810856

Weight of Packaging Material - Plastic

16 g

Weight of Packaging Material - Straphor

275.56 g

Weight of Packaging Material - Carton

730 g

Loading Qty - 2 Axle Wagon

1020

Packaging Type

Carton Box(Sleeve type)

Warranty Information

Warranty Leaflet

Warranty Information - Language

Kazakh

User Manual Languages (Hardcopy)

Macedonian

User Manual Preparation

Arçelik

Workflow ID

CP9b95bc190c2411edb0d40000003a41e0

Rating Label if special Pls. Specify

Russian standards, Belarus standards

Estimated Revision Effectivity Date & Plant Comment(old)

hedef rev tarihi:week36

Other Descriptions / Revision Reason

Bulgaria is added. Beko Balkans added countries and user manuals.

GUID

VRL8550

Other Explanations

otto number:561939 eklenecek Booster function: Yes. BB removed countries and um.

Photo Production Method

3D Render - Inhouse - Retouch

EAN Category

HE

Technical Availability Date

12.2012

Updated Technical Availability Date

12.2012

PM User Code

AR810856

Estimated Earliest Serial Production Date

12.2012

Updated By

vural.burak

Configuration Context Id

CC-30000002

Hobs

Broj električnih zona

4

Installation Type (Cooking)

Built-in

Vrsta ploče za kuhanje

Staklokeramički

Širina

60 cm

Boja

Black

Ukupna električna snaga

6900 W

Booster

Yes

Funkcija memorije

Yes

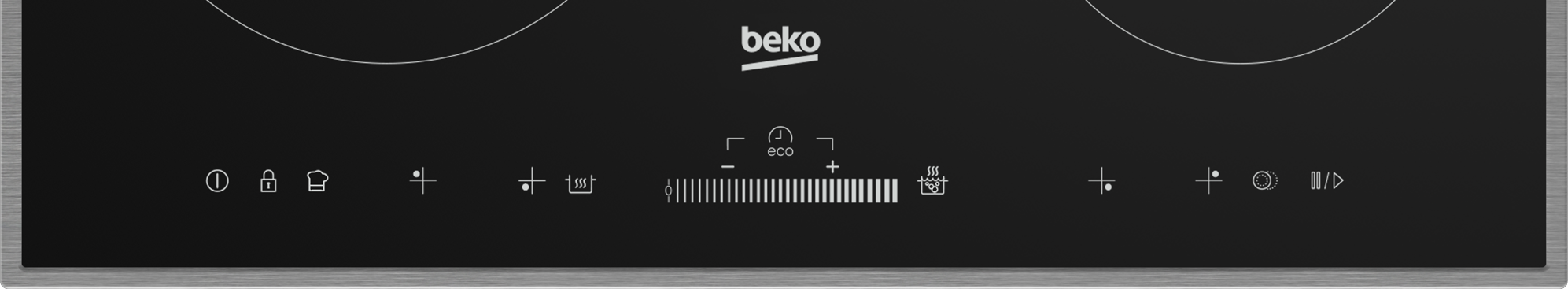

Control Type and Place

Front Touch Control

Front-left Zone

Ø120 mm / 210 mm - 750 W / 2200 W

Vrsta Ekrana

Touch-sensitive Control

Tajmer

Yes

Hob Display Color

Black

Logo Place on Hob

On Glass - Front/Middle

Okvir ploče za kuhanje

Yes

Burner Configuration

4 Vitroceramic Zones

Rear-left Zone

Ø140 mm - 1200 W

Front-right Zone

Ø160 mm - 1500 W

Rear-right Zone

Ø140 mm / 250 mm - 1100 W / 2000 W

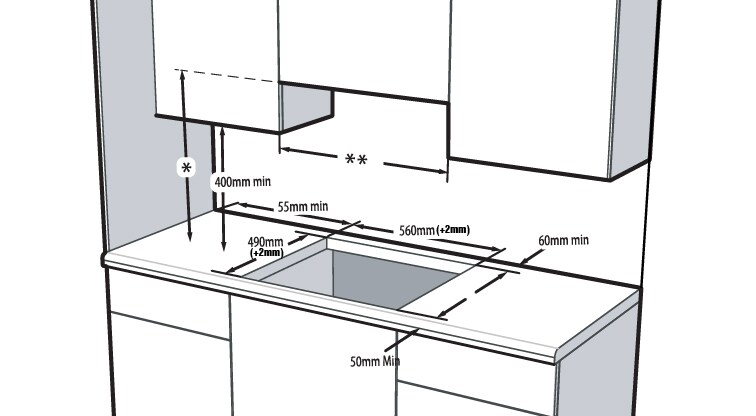

Dimenzije utora (V × Š × D) (mm)

h×560×490

WXDXH ( packed ) (cm)

65,5*55,5*12,5

"Made in" Place

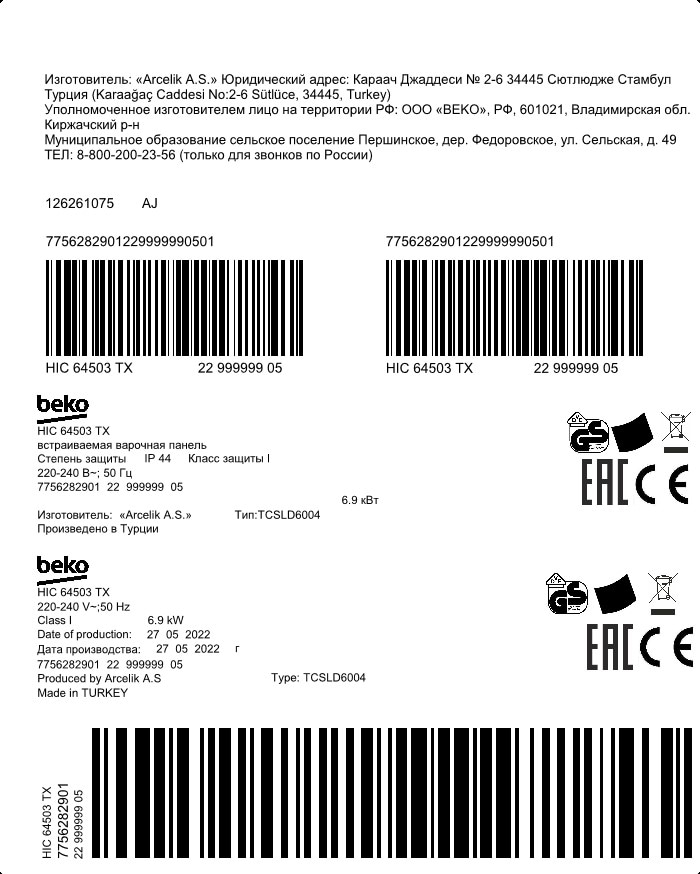

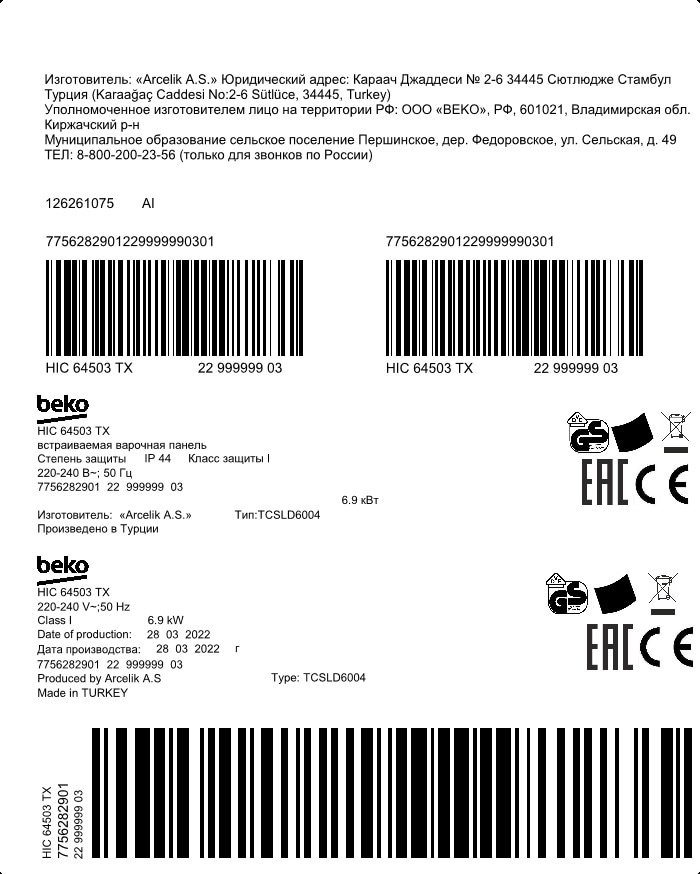

Rating label

Hob Supplier

Arcelik

Bezbjednosno zaključavanje

Yes

Dizajn plamenika

Glass

Pokazatelj zaostale topline

Yes

Supply Cord

Standard

Broj razina kuhanja

19

Heating technology (hob)

Radiant Cooking Zone

Circular Front Left -Ø(cm)

21,0

Circular Rear Left -Ø(cm)

14,0

Circular Front Right -Ø(cm)

16,0

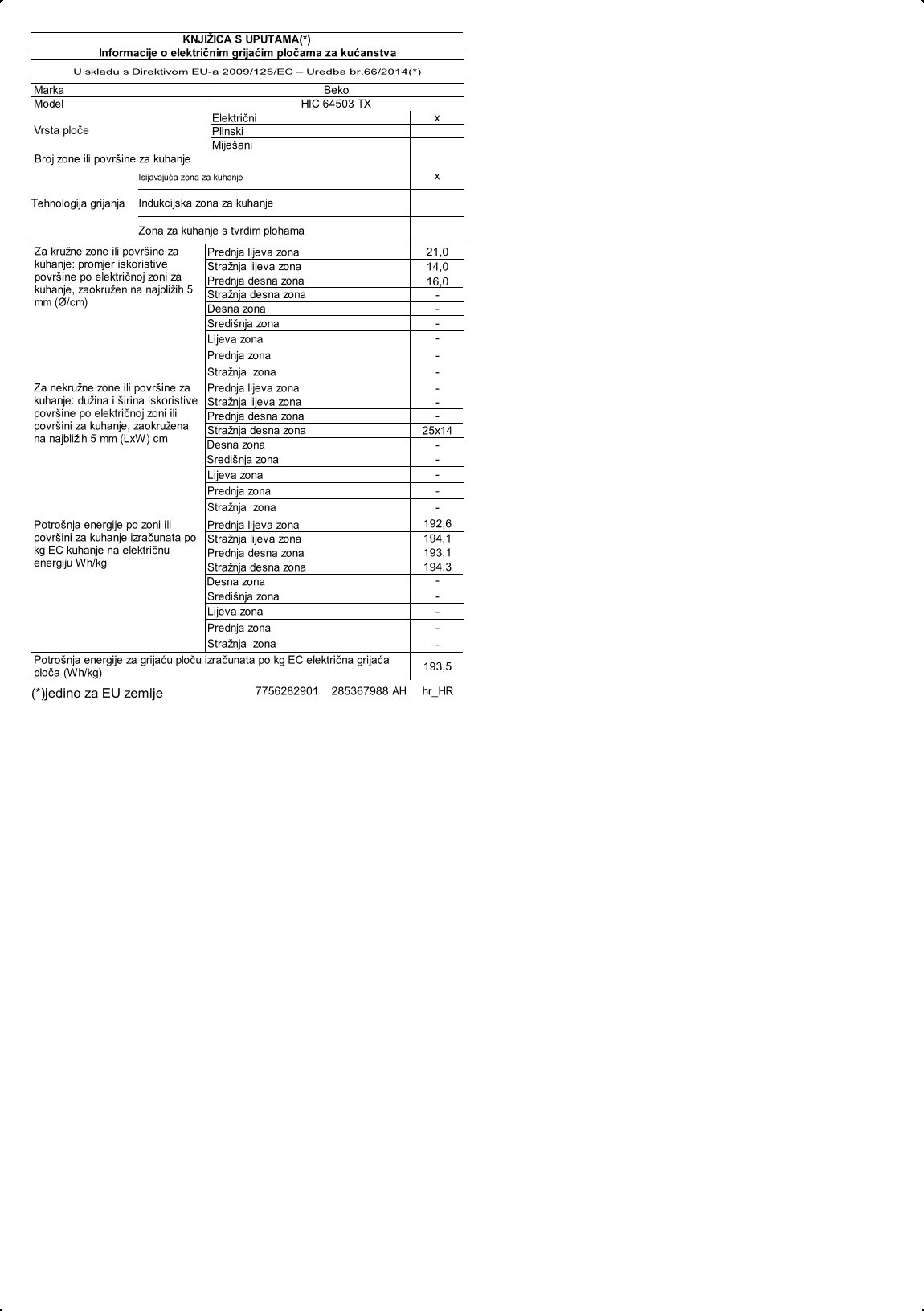

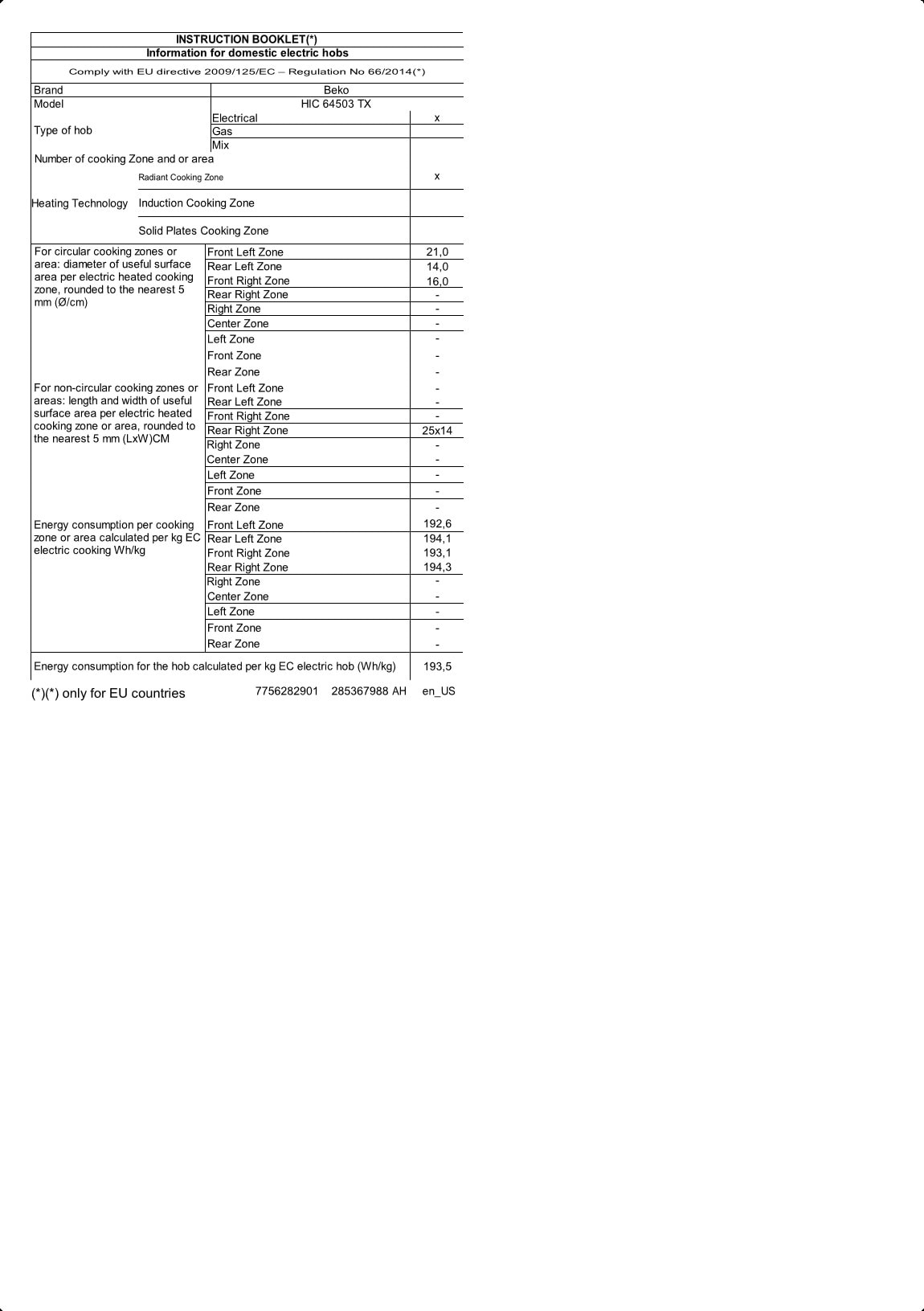

Energy Consumption of Electric Hob (Wh/kg)-

193,5

Voltage/Frequency (Oven)-

220-240 V~\;50 Hz

Staklokeramička

Electrical

EC electric cooking Front Left (Wh/kg)

192,6

EC electric cooking Front Right (Wh/kg)

193,1

Energy Consumption of electric cooking Rear Right (Wh/kg)-

194,3

Energy Consumption of Electric Cooking Rear Left (Wh/kg)-

194,1

Noncircular Rear RightWXL(cm)

25x14

Special Customer Code

IP 44

NPI Project Definition (Hob)

Vitroseramic Projects

On-off Indicator light

Yes

Automatsko isključivanje

Yes

Sustav protiv prelijevanja

Yes

Overheat safety system

Yes

Wipe Guard

Yes

Stop & Go

Yes

Stacking Level (Cooking)

12

Glass Supplier

Kanger

Serigraphy Design

Circular
